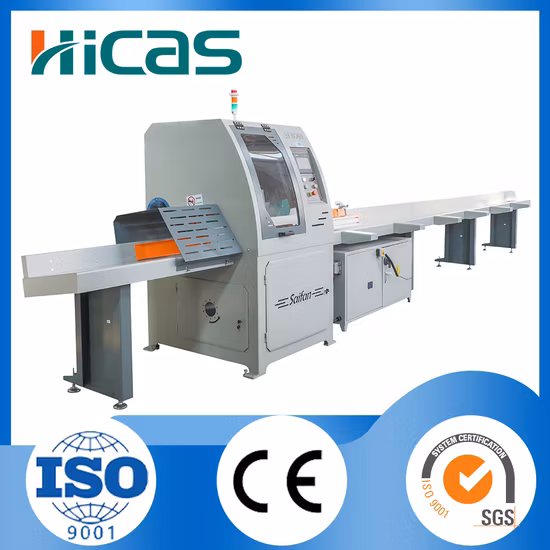

China Wood Pallet Cutting Machine Electric Cross Cut Saw for Woodworking
Description
Basic Info.
Model NO. | SF6060 |
Precision | High Precision |
Certification | ISO |
Customized | Customized |
Condition | New |
Color | Customized |
After-sales Service | 1 Year |
Power | 8.5kw |
Application | Making Wood Pallet |
Cutting Tolerance | in +/-1mm |
Voltage | 380V, 3 Phase, 50Hz |
Product Name | New Type Wood Cross Cutting Saws |
Usage | Wood Process |
Brand | Saifan |
Transport Package | Warpping Film and Plywood Box |
Specification | 8.5kw |
Trademark | Saifan |
Origin | Shandong of China (Mainland) |
Product Description
China Wood Pallet Cutting Machine Electric Cross Cut Saw for Woodworking
Product Description
Feature:This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.Advantages:Easy to operate, high efficiency, safty for worker
NAME | Wood Cross Cut Off Saw | |
Model | SF6060 | SF6061 |
Cutting length | Max. 2m/ 4m/ 6m | |
Cutting height | 10-120mm | 10-140mm |
Cutting width | 30- 200mm | 30-300mm |
Cutting section | Max. 120*150mm/100*200mm | Max.140*140mm/140*300mm |
Feeding speed | 5-30m/min | |
Cutting speed | 40pcs/min | 45pcs/min |
Blade diameter | 450mm*30mm | 600mm*30mm |
Cutter spindle rotation speed | 3000rpm | 3150rpm |
Servo drive motor power | 0.75kw | 1kw |
Cutting motor power | 7,5kw/11HP | 11kw/15HP |
Total power | 8.5kw | 12.5kw |
Pressing method | Cylinder, air pressure 0.5-0.7Mpa | |
Cutting tolerance | In +/-1mm | |
Machine working dimension | L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m | |
Dust collection port | Dia. 100mm*2pc | |
Electrical components | Schneider | |
PLC Touching screen | Siemens | |
Voltage | 380v, 3 phase, 50Hz Can customize (extra cost $200) |

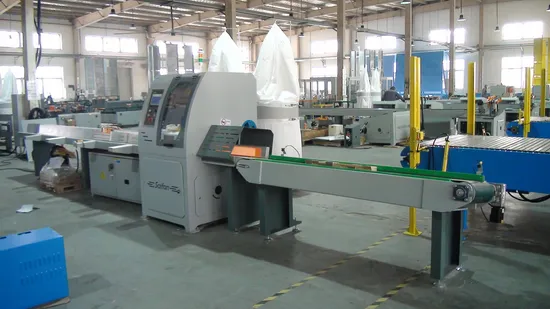

Detailed Photos
Related productsSF606 wood pallet cutoff sawhttps://hicasmachinery.en.made-in-china.comSF6023 Heavy duty double end trim sawhttps://hicasmachinery.en.made-in-china.comSF701 Wood pallet notcher https://hicasmachinery.en.made-in-china.comSF703 Wood pallet chamfer machinehttps://hicasmachinery.en.made-in-china.comSF704 Wood pallet corner cutting machinehttps://youtu.be/04uB3h3g7E8 SF901 Stringer wood pallet nailing machinehttps://hicasmachinery.en.made-in-china.comSF9022 Wood pallet leg nailing machinehttps://hicasmachinery.en.made-in-china.com
Final Product
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China.We are committed to provide one-stop service to our customers all over the world.HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.7.Customer and feedbackPackage&Shipment
1.Packing details: Warrping film with plywood box or as your request.2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.3.Timely delivery and transportation
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?1. Technical support by phone, email or WhatsApp/Skype around the clock.2. Friendly English version manual and operation video.3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?Our machines can be customized made according to buyers' request.
7. What other machine do you offer?We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?Our system supports common languages like Chinese, English, Russian, Spanish.
After-sale service
1. We respect your feed back after receiving the goods.2. Tracing the working condition by email per month.3. 24 hours technical support by email, call, video.4. English CD and manual for machine using and maintainance.5. Whole machine one year warranty.6. Whole life warranty.7. Engineers available to serve and train overseas, but your side should pay all the expense.
